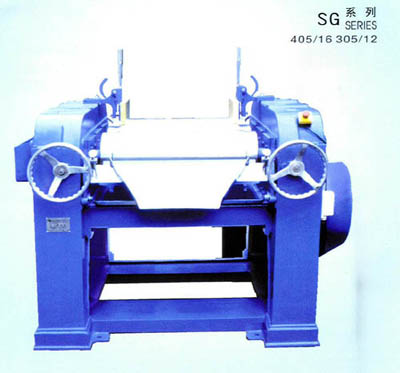

 Three Roller Mills


Features:
(1) Roller surface is made of double-metal cold
      and hard alloy and is of high rigidity,
      anti-shock, and great endurance.
(2) Transmission system: multi-line chain wheel,
      soft starting, allows high transmission
      effect, stable running and noiselessness.
(3) Manual operating differential speed adjusting
      roller allows simple and correct adjustment.
      The overload prevention device is safe and
      reliable.


 TECHNICAL PARAMETERS:
Type Roller
(mm)
配套動力
(KW/HP)
Speed Ratio 參考產量
(KG)
Weight
(KG)
Overall Dimensions(mm)
L         W          H
SG-305/12 ∮305×750 11/15 1:3:9 30-80 3200 1520×1850×1130
SG-405/16 ∮405×1070 18.5/25 1:3:9 50-100 1500 1760×2140×1320
 NOTES:
  • The standard configuration is manual, water-cooling and horizontal setting. If you need any special function such as heating system, you can place an order marking your requirements on it.
  • The roller is made by double-metal cold and hard alloy, and is not suitable for the grinding of corrosive materials.
  • Parameters above listed are those for standard delivery. Please notify us the details and date of delivery if you have any special requirements.
  • According to our policy of constant improvement and innovation, we reserve the right for making modification and interpretation to the data above listed.
